Commercial air balancing brings a building’s HVAC system into compliance with its mechanical design — every supply diffuser, return grille, exhaust grille, and VAV terminal box measured against the engineer’s CFM schedule, then adjusted to spec and documented in a stamped TAB report. We perform this work as an independent third-party TAB agent under ASHRAE Standard 111 and the NEBB and AABC procedural standards.

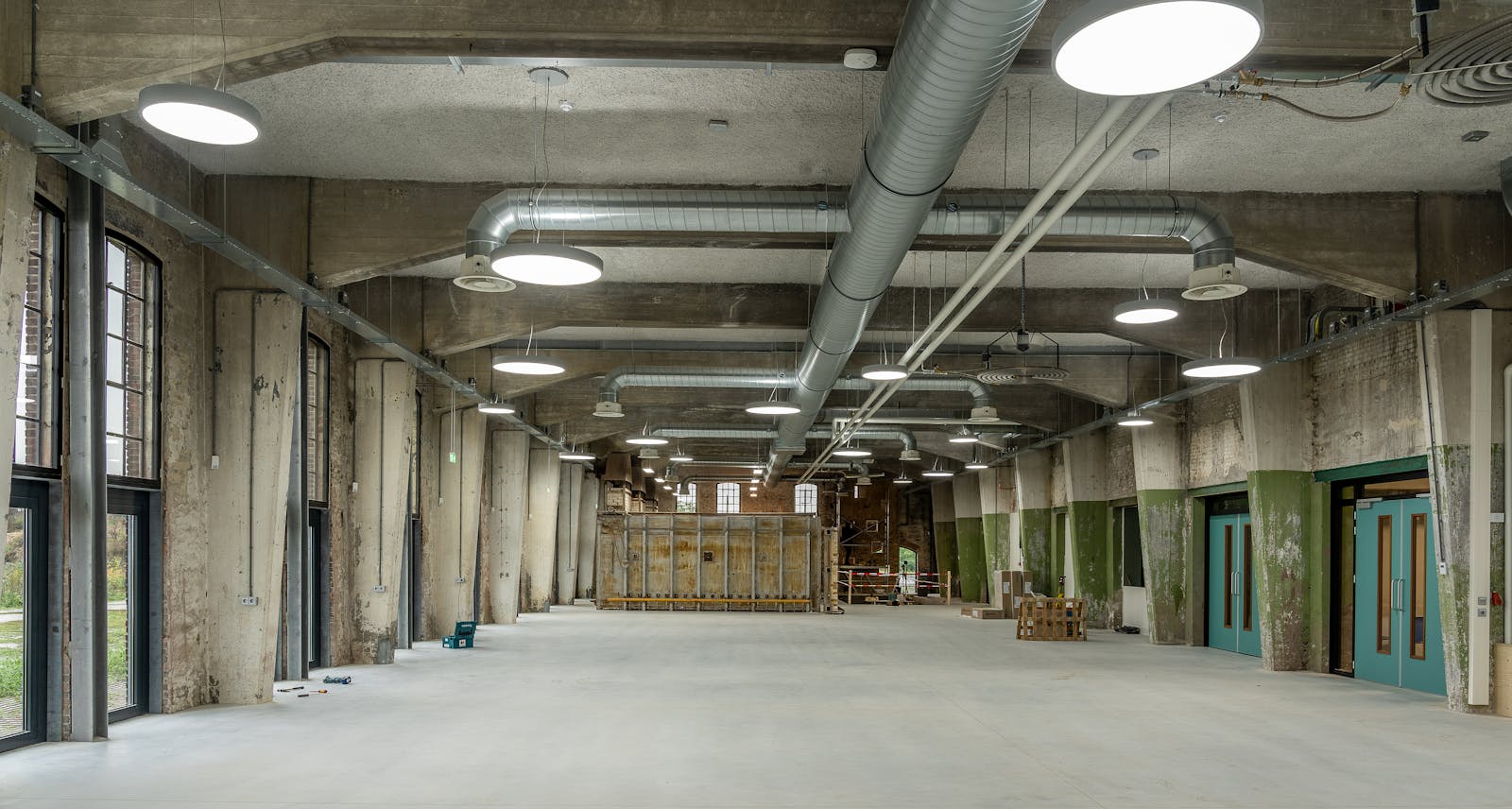

Air balancing — large commercial industrial space with overhead galvanized supply ductwork ready for TAB verification under ASHRAE 111
Overhead commercial industrial ductwork — the scope of a real air balance.

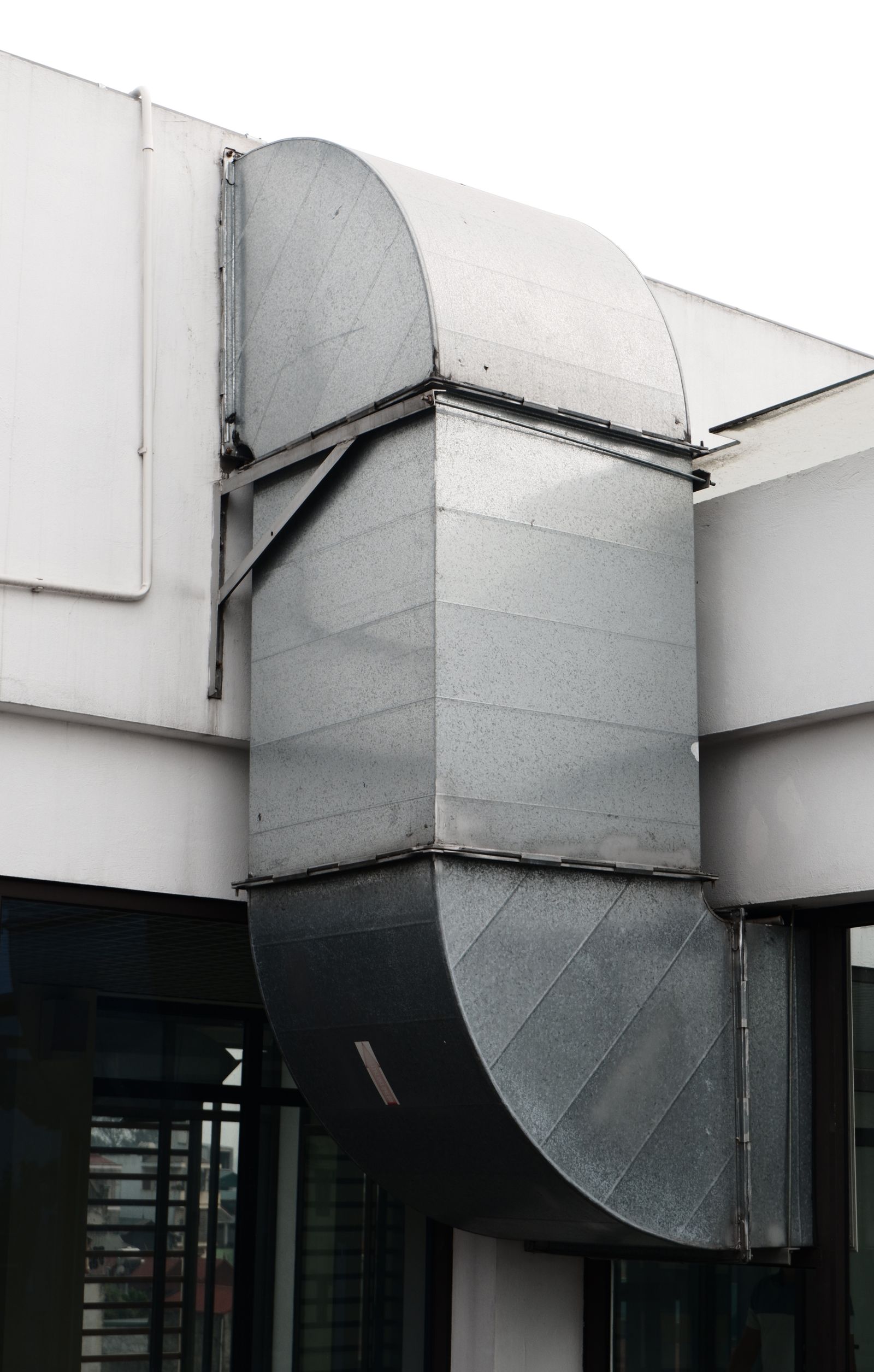

Commercial air balancing — large galvanized supply duct elbow on a commercial building

What air balancing actually verifies

The air side of an HVAC system performs to the engineer’s intent only when measured airflow matches design at the device, fan, and zone level. Air balancing verifies that condition. On a typical commercial project the scope includes:

  • Supply, return, and exhaust airflow at every diffuser, grille, register, and louver — measured with Pitot tubes, micromanometers, or vane anemometers depending on duct configuration and accessibility
  • VAV and CAV terminal box performance — minimum and maximum CFM verified against the BAS commanded position
  • Fan performance at supply, return, and exhaust units — total CFM, static pressure, motor amperage, VFD output, and operating point on the manufacturer curve
  • Outdoor air and economizer operation — measured OA delivery at each AHU, with damper position verified against the BAS command
  • Building pressurization — positive or negative differential pressure across the envelope and between zones, where the design intent specifies a setpoint

Each value is recorded against the design value, with the percent deviation noted. Out-of-tolerance items become punch list entries directed at the mechanical contractor.

When commercial air balancing is required

Five situations bring a building owner or mechanical contractor to the TAB conversation:

  1. New construction closeout. Most owner-architect-contractor agreements require a stamped TAB report before substantial completion. Many AHJs will not issue a CofO without it.
  2. Major equipment replacement. Chiller, boiler, AHU, or VFD replacement changes the operating point of every downstream device. A re-balance restores design conditions.
  3. Tenant build-out or repurpose. New partition walls, new diffuser layout, or new occupancy loads change the load profile. The affected zones need re-balance.
  4. Retro-commissioning and energy audits. Documented as-found airflow data is the baseline that justifies retrofit scope and ROI.
  5. Chronic comfort complaints. Hot zones, cold zones, slamming doors, humidity drift, and CO2 spikes most often trace back to an unbalanced air system rather than failing equipment.

Our air balancing field process

Every engagement follows the same backbone:

  1. Drawing and submittal review. Our lead engineer reviews mechanical plans, the sequence of operations, and equipment submittals before mobilization. We flag missing balancing valves, undersized takeoffs, and suspect damper layouts during this review — before the field crew arrives.
  2. Pre-test conditions. The system must be running on the BAS in automatic mode, dampers calibrated, ductwork sealed, and filters new. We verify these conditions at the start of the field round and document anything that does not meet pre-test criteria.
  3. Field measurement. Pitot tube traverses on main duct runs to verify fan output. Vane anemometer or hood readings at each diffuser. Manometer readings at static pressure taps. Every measurement gets logged room by room and register by register.
  4. Adjustment. Damper positions, VAV box programming, balancing valves, and where required, AHU and exhaust fan VFD output, are set to bring measured values within tolerance of design.
  5. Verification round. A second pass confirms each adjustment held. Where balance cannot be achieved due to a mechanical defect, the issue is photographed, located on the drawing, and routed to the mechanical contractor for correction.
  6. Report production. The signed, stamped report ships to the owner’s rep, with copies to the engineer and mechanical contractor as the spec requires.

What our air balancing report contains

A complete commercial air balancing report runs 30 to 120 pages depending on system size and includes:

  • Cover letter, methodology statement, and procedural standard reference
  • Equipment inventory — every AHU, exhaust fan, VAV box, and air terminal
  • Measured-vs-design data tables organized by floor, system, and zone
  • Fan performance curves with measured operating points plotted against manufacturer data
  • Calibration certificates for every instrument used, dated within twelve months
  • Photo plates documenting any deficiency or as-installed condition
  • Punch list with each item tied to a drawing reference and a responsible trade

The report is delivered as a stamped PDF plus the underlying spreadsheet so future commissioning, energy audit, or retro-commissioning teams can extend the dataset.

Air balancing schedule and pricing

A small single-zone office runs two to four field days plus report production. A typical 100,000 sq ft multi-tenant office runs one to two weeks of field work. A complete downtown high-rise can require three to six weeks plus extended report production. We routinely schedule night and weekend work to accommodate occupied buildings and tight closeout windows.

Pricing is built from device count, system complexity, and access conditions, not from a square-footage rule of thumb. Send mechanical drawings and a schedule outline, and we will return a fixed-price proposal within one business day.

Coordinating with the mechanical contractor and GC

Independent TAB is a closing trade — we arrive after mechanical systems have been started and run under BAS control, and our findings drive punch list activity for the mechanical contractor, controls contractor, and where applicable, the architect’s envelope team. We coordinate directly with the GC’s closeout schedule and provide weekly status during the field round so there are no surprises at the punch walk.

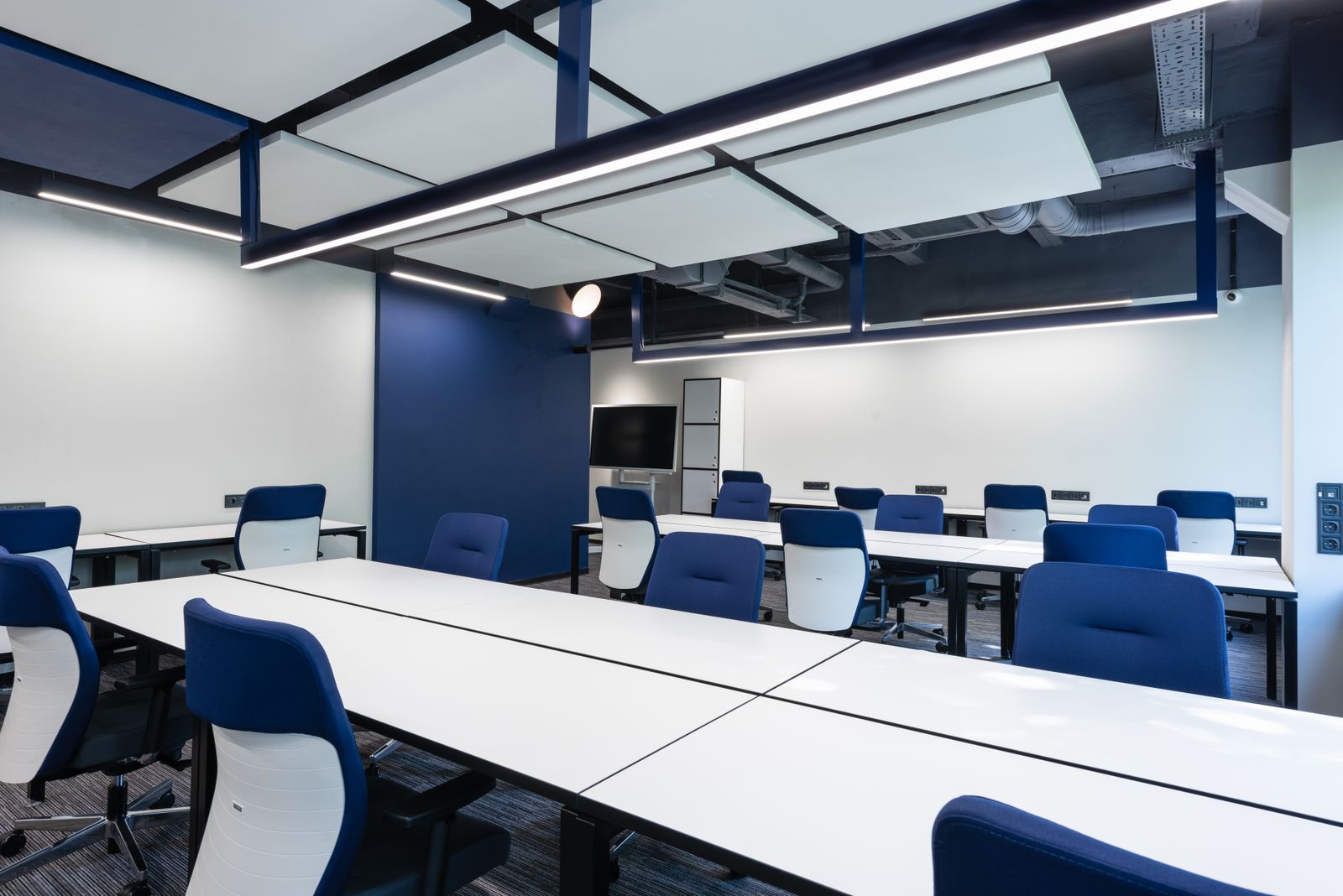

Air balancing — modern Class A commercial office with exposed ductwork above blue training-room seating
Class A commercial office — the kind of space where air balance keeps tenants comfortable.

Talk to us about an air balancing scope

Whether you are an owner’s rep evaluating an independent TAB agent for closeout, a mechanical contractor needing third-party verification before final inspection, or a property manager working through a chronic comfort complaint, we are happy to walk through scope and pricing.
